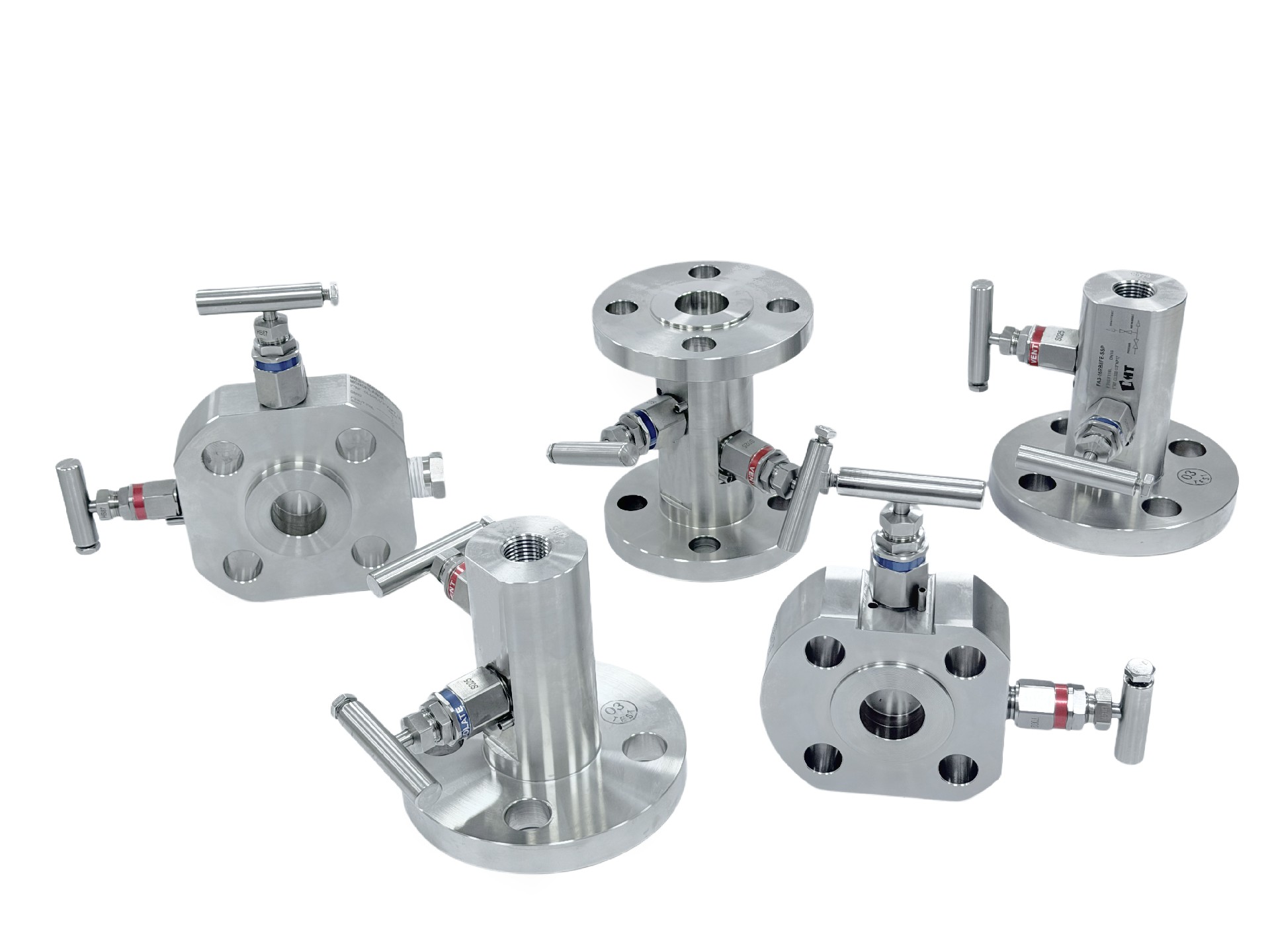

Monoflange Valve

KHT offers a 3/16” or 3/8” bore monoflange for use on Upstream Offshore/Onshore Gas and Oil production and initial processing installations. Typically used on gas gauge pressure instrument applications to minimize the size and weight of the pipe-valve assemblies used for primary and/or secondary isolation,vent and calibration. Also used in downstream oil and gas refining and petrochemical production on flanged processes, primarily on light end gas applications

lANSI Flange Class:    150, 300, 600, 900, 1500, 2500

lMaximum Operating Pressure:    275, 720, 1440, 2160, 3600, 6000, 285, 740, 1480, 2220, 3705, 6170, 290, 750, 1500, 2250, 3750, 6250 psi, 19, 50, 99, 149, 248, 414, 20, 51, 102, 153, 256, 426, 52, 103, 155, 259, 431 bar

lOperating Temperature:    400, 1000 °F, 204, 538 °C

lMinimum Operating Temperature:    -20, -65 °F, -29, -54 °C

lSeat Material:    316 Stainless Steel, Carbon Steel, Duplex

lConfiguration:    Block-Block-Bleed, Block-Bleed
